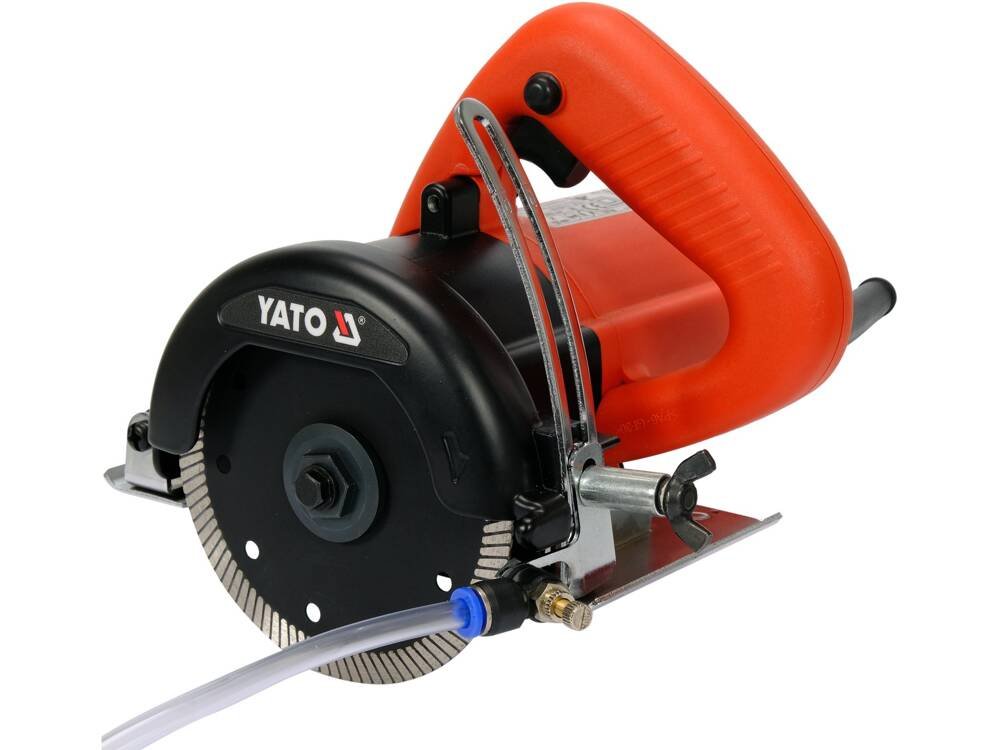

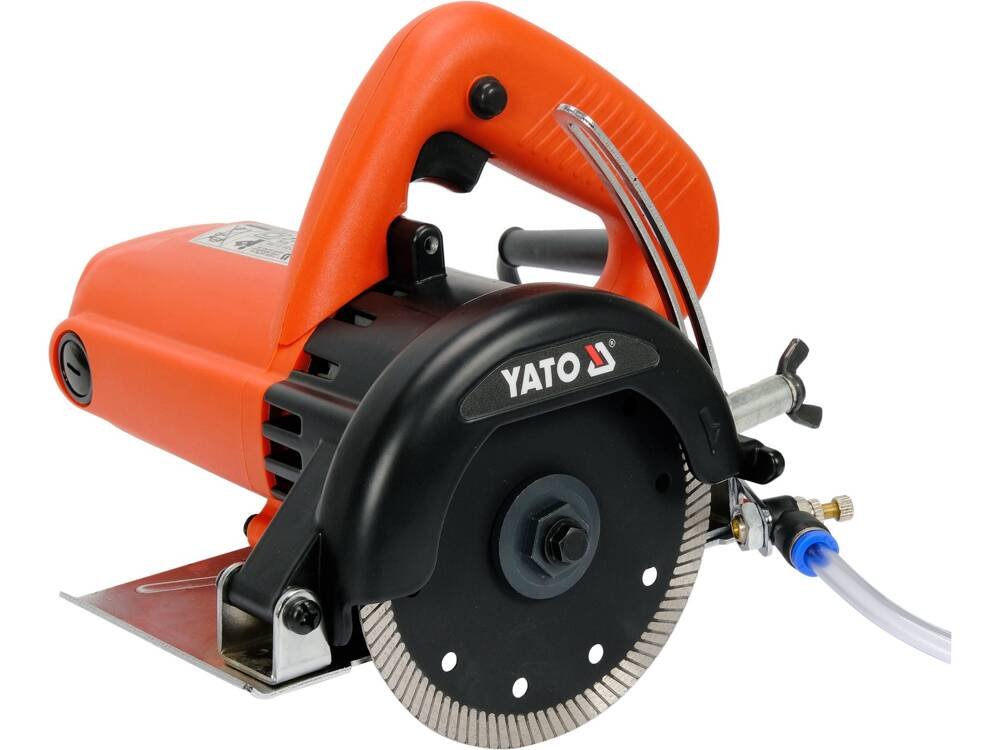

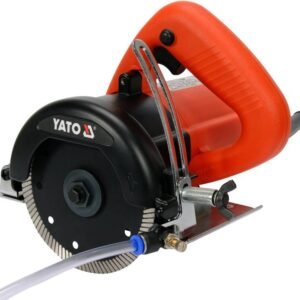

The tile cutter is used for cutting with rotating diamond discs and enables cutting ceramic materials (e.g. concrete, brick, plaster) in a straight line. Thanks to a special switch, the cutter is designed to work with water cooling.

The cutter is equipped with a cutting wheel, and a connection to the water system.

The cutting machine is equipped with a high-powered motor that can withstand heat and dust. Thanks to this you can also use the machine for cutting natural stone or grooving in concrete.

The size of the blade is 125mm x 22.23, so the accessory is widely available and gives you the opportunity to optimally adapt to the material being cut.

The cutter has adjustable water spray, and its diameter fits an 18V YT-86211 hydronet, as well as garden sprayers. With this feature, there is no dust in the air, cutting is faster and less wear on the blade, plus the edge of the material is not frayed.

• • The base plate is even and rigid which ensures easy longitudinal cutting, the machine has the ability to work with a parallel cutting guide<

• high rotational speed of 12,000 rpm influences the preservation of unchipped cutting edge
• the rotor and stator winding is copper and is characterized by resistance to high temp. up to 200°C
• good visibility of the cutting line and a firm grip guarantee accurate machining

Parameters:

• network voltage [V~]: 220 – 230
• network frequency [Hz]: 50
• rated power [W]: 1400
• insulation class: II
• rated rpm [min-1]: 12000
• spindle thread size: M8
• weight [kg]: 3.29
• mass
  • outside diameter of cutting disc [mm]: 125
  • internal diameter of cutting disc [mm]: 22.2

  .

  • max thickness of cutting disc [mm]: 1.6
